Advance Mobility - Freedom Specifications

Advance Mobility Freedom is designed for an older child or young adult 10 years +, with a maximum weight of 200lbs (90kg).

The Advance Mobility Freedom has 16" wheels fitted with pneumatic tyres using heavy duty thorn resistant inner tubes - which provide a smooth ride and puncture resistance. The wheels are quick release for more compact storage during transportation.

The seat and sun canopy fabrics are washable canvas.

The Advance Mobility Freedom comes with a lifetime frame warranty for the original owner. Soft Goods, e.g. fabrics & wheels have a 12 month warranty. The Freedom is CE approved.

Whilst the Advance Mobility Freedom may be used for a child or young adult with special needs the hammock style seat makes it unsuitable for a child who requires postural management support, if in doubt please seek the advice of your physiotherapist.

Please note that this product is intended for outdoor use, due to it's size it is unlikely that it will be practical for an occupant to be loaded in doors and then wheeled out through a residential doorway.

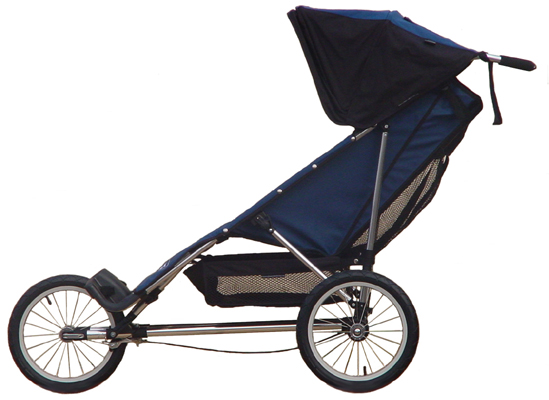

Upright

Imperial

Metric

Length

66"

168 cm

Width

30.5"

78 cm

Handle Height

40"

102 cm

Wheelbase

38.5"

98 cm

Lower Leg (knee to footplate)

17"

43 cm

Lower Leg with optional Extended Footwell fitted)

22"

56 cm

Seat Angle

140 degrees

Seat Back Width

13"

33 cm

Shoulder Width

18"

46 cm

Seat Width at Knee

18"

46 cm

Seat Depth

15"

38 cm

Seat Back Height

27"

69 cm

Seat Back Height (with optional Highback Head Rest fitted)

32"

81 cm

Max Back/Head Height

29"

74 cm

Wheel Diameter (Front & Rear)

16"

40 cm

Weight

30 lbs

13.6 kg

Maximum Load

200 lbs

90 kg

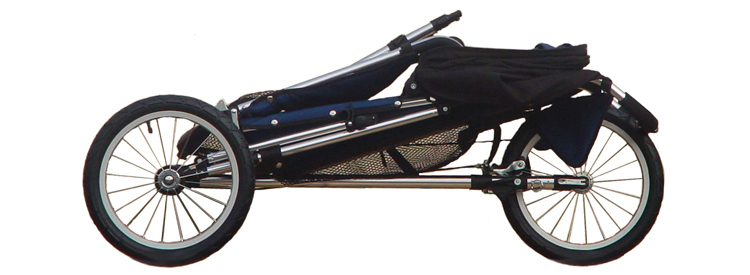

Folded Wheels On

Imperial

Metric

Length

53"

135 cm

Height

20"

51 cm

Width

30.5"

78 cm

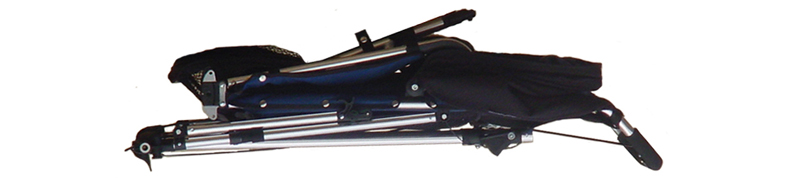

Folded Wheels Off

Imperial

Metric

Length

47"

120 cm

Height

15.5"

40 cm

Width

24"

61 cm

The Advance Mobility Freedom has not been 'crash tested' and is not suitable for transporting a child in a vehicle.

Please note that the specifications listed above are as accurate as is practical to give, they are rounded for ease of presentation and are subject to manufacturers change without notice. If a particular dimension is critical to you then contact us for an exact figure.
